Innovative Quick Fit terminal from Keystone Electronics; pcb tabs on continous reel and surfcase mountable male quick fit terminals.

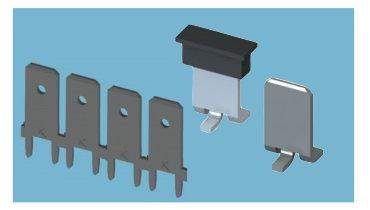

New: ¼" Male, Quick-Fit PCB Tabs on Continuous Reel

These new, male tab terminals are specifically designed on a continuous reel (strip) to be compatible with standard automated insertion equipment - reducing assembly and processing time.




Manufactured from Brass with Tin-plate, these new Quick-Fit Terminals ensure easy installation and soldering to a PCB and are packaged on reels as a "drop in" replacement for existing product.
The Quick-Fit terminals are available in 3 models:
Part number: 1287-R for ¼"-wide Male Tabs with .312" height above the board.
Part number 1287-STR for additional solder joint strength and designed to keep the terminal perpendicular to the board during and after soldering
Part number 1289-STR for taller tab requirements, which is .540" height above the board.



Surface Mountable Male Quick Fit Terminals

As a surface mount product, these new quick fit terminals reduce scrap and handling time while minimizing damage to a PCB that may occur while using traditional mounting of thru hole quick fit terminals used on PCB's.
The design also serves to keep terminals perpendicular to the PCB so that the relative position is maintained during, and permanently after, the soldering process, they are ideal for use with most vacuum and mechanical pick-and-place assembly systems.

Manufactured from Brass with a tin plate, these SMT Quick fit terminals are available in Bulk, Cat No 4928 or on Tape and Reel, Cat No 4928TR

Contact us for more information about these products from Keystone!
